JOYSCAPE Tiny, Basic, Multi and Rough from the RAFI Joystick Platform

Joyscape

THE JOYSTICK PLATFORM FOR CONTROL SYSTEMS
  1. Home
  2. Ι HMI
  3. Ι HMI Platforms
  4. Ι JOYSCAPE

Joysticks are ideal for intuitive and safe operation in many applications. RAFI understands the requirements and, with the JOYSCAPE platform, produces high quality joysticks in-house for integration into control systems. The advantages over standard joysticks are confirmed in our customer projects: Product quality under RAFI control, application-oriented ergonomics and haptics with high operating safety, individual design solutions, flexibility in function and price, as well as the long product availability typical for RAFI. Together with you, we find the right solution for your control system.

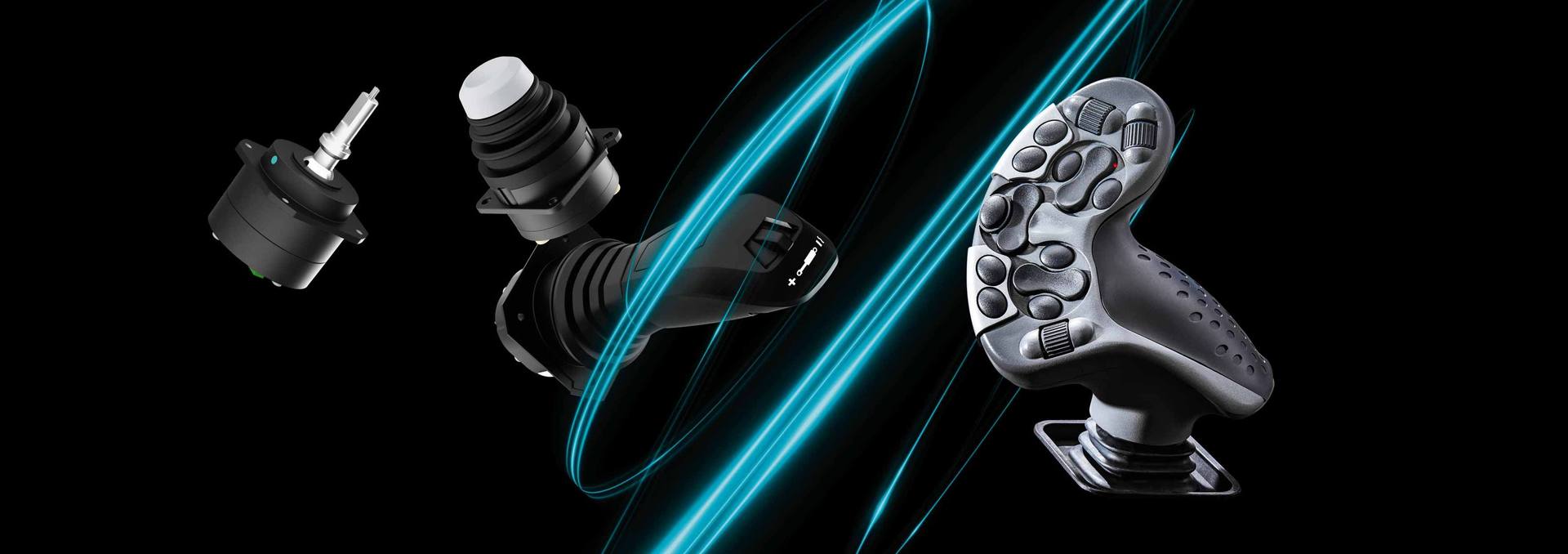

Joysticks of the JOYSCAPE platform from RAFI: Basic, Tiny and Multi.
[Translate to Englisch:] Schmuckbild ozeanblau

The advantages

  • System integration and scalable technology thanks to in-house production
  • Space-saving platform solutions with standard modules
  • Customer and application-specific handles
  • Wear-free 3D Hall sensors
  • Wide range of gates, angles of deflection, and operating forces for outstanding operating comfort
  • Illuminated handles for use in mobile applications after dark
  • Easy cleaning for high hygiene standards thanks to special folding bellows
  • Redundant design of sensor systems for applications with high safety requirements
Pistenbullys in action on the slopes. In the foreground RAFI armrest for the Pistenbully with JOYSCAPE ROUGH.
VEHICLES (OFF-HIGHWAY) – HMI

PISTENBULLY

RAFI has developed an innovative joystick on the basis of the JOYSCAPE ROUGH that is used in Pistenbully vehicles. The company received the WiR Innovation Award 2017/2018 from the Economic and Innovation Promotion Agency Ravensburg (WiR) for this innovation.

Armrest study from RAFI with JOYSCAPE Mulit and Linear. In the background, a tractor at work in the field. VEHICLES (OFF-HIGHWAY) – HMI

STUDY

An active and smart surface in three dimensions that can be operated by touch to enable intuitive and at the same time ergonomic operation.

Forklift truck at work. In the foreground, control panel for forklift trucks with JOYSCAPE Multi from RAFI. VEHICLES (OFF-HIGHWAY) – HMI

FORKLIFT TRUCK

Simple and reliable operation of forklift trucks with the JOYSCAPE MULTI.

Nurses and patients in the hospital corridor. In the foreground, a control unit for ultrasound equipment with the RAFI JOYSCAPE Multi MEDICAL TECHNOLOGY – HMI

ULTRASOUND DEVICE

Control units for medical devices with high hygiene standards thanks to JOYSCAPE MULTI.

JOYSCAPE Linear from RAFI
JOYSCAPE

LINEAR

Single-axle joystick for finger operation. The optional capacitive sensors and illumination in the handle ensure a high degree of operating safety.

JOYSCAPE

TINY

For integration into the joystick handle. Compact and optimized for thumb operation.

JOYSCAPE Tiny from RAFI
JOYSCAPE Basic from RAFI
JOYSCAPE

BASIC

When limited space is available. Tilts freely in the X-Y plane. Designed for work requiring “fingertip feel”.

JOYSCAPE

MULTI

For versatile multifunctional handles with a variety of options, (thumb joystick, rocker switch, push function, etc.), combined with low space requirements for mounting.

JOYSCAPE Multi from RAFI
JOYSCAPE Rough from RAFI
JOYSCAPE

ROUGH

When it’s time to get to work. Easy to operate, even in the harshest conditions. Ergonomic multifunction handles can be implemented for intuitive control of complex processes.

[Translate to Englisch:] JOYSCAPE-Broschüre von RAFI
Download

BROCHURE JOYSCAPE

Here you can download our brochure.
