![[Translate to Englisch:] Robuste Signalleuchte mit Edelstahlbund](/fileadmin/_processed_/d/6/csm_FOT_ART_1745091112200-Zusammenstellung_V7_1_7667e34527.jpg "Rugged signal lamp with stainless steel collar and red/green LED")

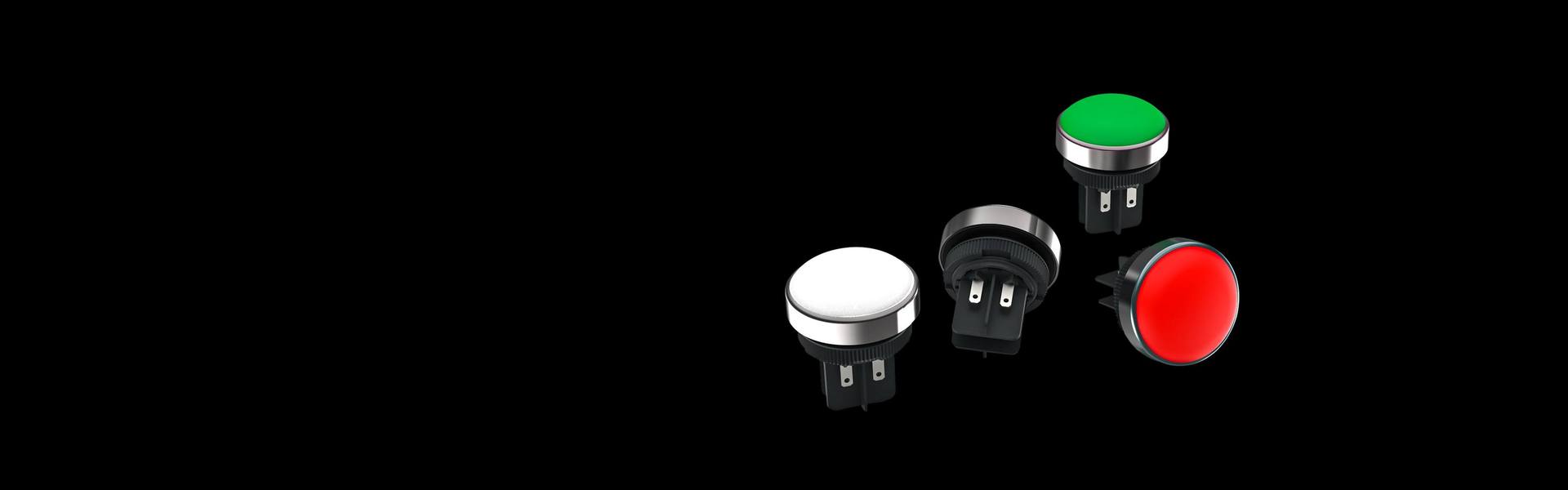

Rugged signal lamp with stainless steel collar and red/green LED
RAFI is expanding its rugged RAFIX 22 FSR control component range with a signal lamp featuring a stainless steel collar with IP65, IP67 and IP69 degree of protection to the front side. The integrated red/green LED can indicate three signal statuses. The translucent indicator is a neutral white in standby mode, green indicates regular operating condition, and red signals faults.
The convex signal indicator makes it easy to see the signals from different directions and
distances. The lamps have a diameter of 31.3 mm and an installed height of 12.2 mm. Like all RAFIX 22 FS/FSR control and signaling units, they fit standard 22.3 mm installation openings. The mounting depth is 25.45 mm. For the display of different status conditions, the lamps feature wiring over separate terminals with reverse-polarity protection for 2.8 mm x 0.8 mm quick connectors with operating voltages of 8 VDC to 30 VDC.
